Applicable Standard
Design Standard: API594, BS1868,ASME B16.34, API 6D, DIN2533
Face to Face: ASME B16.10, API 6D, EN 558, DIN 3202
End Flange: ASME B16.5, ASME B16.47, DIN2501, DIN2533
Buttwelding Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230
Products Range
Size: 2" ~ 24" (DN50 ~ DN600)
Rating: ANSI 150LB-900LB
Body Materials: MONEL
Trim: Per API 600

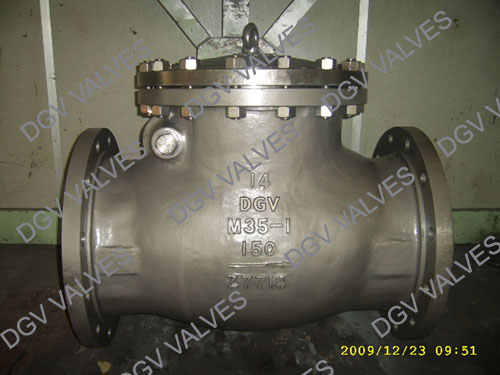

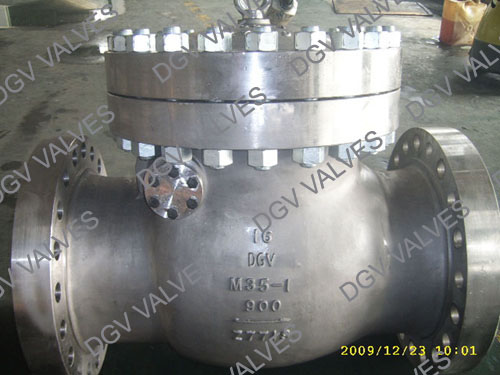

Design Features
Full open design
Bolted cover.
Swing type disc design
Optional buffering damp structure
Renewable or and welded seat
Flanged or buttwelding ends
|
